Best Solar Panel for the EcoFlow RIVER 3 Max: 572Wh on a 220W Solar Input
Solar panels for the EcoFlow RIVER 3 Max: two 160W in series, one 220W single-face or two 125W bifacial fill its 220W input. EcoFlow quotes 0-100% in 3.2 hours.
Checked against the sources listed below. How we research.
Key takeaways
- The RIVER 3 Max is a RIVER 3 Plus plus a 286Wh extra battery (572Wh total). The solar port is on the RIVER 3 Plus unit: 11-55V, 13A, 220W max.
- EcoFlow PH's spec table says 220W of solar charges the RIVER 3 Max 0-100% in 3.2 hours.
- Verified 220W setups: two EcoFlow 160W single-face panels in series, one 220W single-face panel, or two 125W bifacial panels in parallel.
- EcoFlow's own manual recommends one 220W Lightweight panel for this model. That is a different panel from the 220W single-face we link, but both are 220W.
- Not compatible: the 400W rigid panel (13.79A) and two 160W panels in parallel (18.2A).
On this page
The EcoFlow RIVER 3 Max takes up to 220W of solar, and three verified setups reach it: two EcoFlow 160W single-face panels in series, one EcoFlow 220W single-face panel, or two EcoFlow 125W bifacial panels in parallel. EcoFlow says 220W of solar charges it 0-100% in 3.2 hours.
How the RIVER 3 Max is built

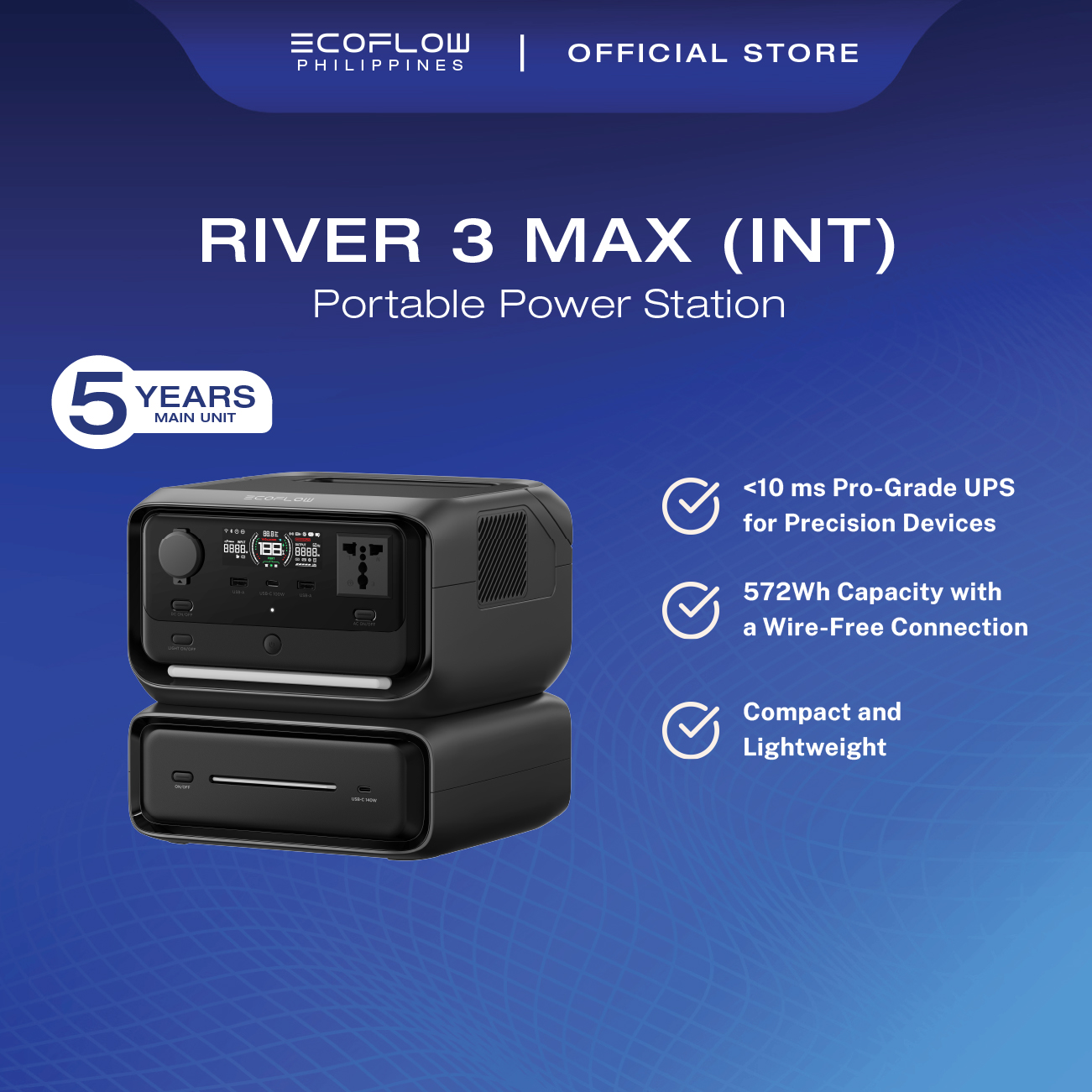

The EcoFlow RIVER 3 Max is sold as a RIVER 3 Plus with a RIVER 3 Plus Smart Extra Battery 300 attached: 572Wh in total, 600W AC output (1200W X-Boost), about 8.4 kg. The extra battery has no solar input. All solar goes into the RIVER 3 Plus unit’s XT60i port:
- 11-55V, 13A, 220W max (RIVER 3 Plus manual)
- Twice the battery of a RIVER 3 Plus, same solar input, so solar charging takes about twice as long
Compatibility table
| Panel | OK? | Count and wiring | Usable watts | Cable / adapter | Buy |
|---|---|---|---|---|---|
| EcoFlow 160W single-face (NextGen) | Yes | 2, series | 220W | MC4-to-XT60i, included | Lazada |
| EcoFlow 220W single-face (NextGen) | Yes | 1, single | 220W | MC4-to-XT60i, included | Lazada |
| EcoFlow 125W bifacial | Yes | 2, parallel | 220W | XT60W-to-XT60i, included; daisy-chain via XT60W leads | Lazada · Shopee |
| EcoFlow 160W single-face | Yes | 1, single | 160W | MC4-to-XT60i, included | Lazada |
| EcoFlow 125W bifacial | Yes | 1, single | 125W | XT60W-to-XT60i, included | Lazada |
| EcoFlow 400W Lightweight | Yes, with caution | 1, single | 220W (capped) | None, built-in XT60 | Lazada |
| EcoFlow 60W / 45W | Yes | 60W: up to 3 parallel; 45W: 1 | 45–180W | Included cables; parallel cable sold separately | 60W · 45W |
| EcoFlow 160W, 2 in parallel | No | — | — | — | 18.2A, above 13A |
| EcoFlow 125W bifacial, 2 in series | No | — | — | — | About 100V, above 55V |
| EcoFlow 400W rigid | No | — | — | — | 13.79A, above 13A |
The 400W Lightweight’s front-side current (12.2A) is within 13A, but its bifacial rating (13.5A) can go above it, and the station only uses 220W.
About EcoFlow’s own recommendation: the 220W Lightweight manual lists one 220W Lightweight panel for the RIVER 3 Max. The Lightweight is a different, bifacial panel from the NextGen 220W single-face we link above. We checked the single-face panel against the port limits and it passes (21.5V, 12.4A).
Why two 160W panels in series suit this model
With 572Wh to fill, you want the station at its 220W cap for as many hours as possible. Two 160W panels give 320W of panel on a 220W input (42.6V, 9.1A in series), which may help it stay nearer the cap in weaker morning and afternoon light. The trade-off is two panels to set out (5.6 kg each) and a series connection to make.
Example charge-time estimate
Example assumptions, not test results: 220W reaching the station, and a 20% loss allowance (EcoFlow’s 3.2-hour figure is about 23% longer than 572 ÷ 220).
| Setup | Simple maths | With 20% allowance | Share filled in an example 3 peak-sun-hour day |
|---|---|---|---|
| 220W (any of the top three) | 572 ÷ 220 ≈ 2.6 h | about 3.1 h | about 96% |
| 1 × 160W | 572 ÷ 160 ≈ 3.6 h | about 4.3 h | about 70% |
| 1 × 125W | 572 ÷ 125 ≈ 4.6 h | about 5.5 h | about 55% |
On cloudy rainy-season days, a 572Wh battery on one small panel may take two days. Check what you need overnight with the EcoFlow runtime calculator.
Setup steps
- Set the panels in full sun, no shade on any cell.
- Two 160W: join their MC4 leads male-to-female in series, then connect the MC4-to-XT60i cable. Two 125W: daisy-chain the XT60W leads, then use the XT60W-to-XT60i cable.
- Plug into the solar input on the RIVER 3 Plus unit, not the extra battery.
- Check the solar watts on the display. Keep the station shaded and dry.
Portable panels can be set up by the owner following the manual. Anything wired to the house, breaker panel or roof needs a licensed electrician and an LGU electrical permit.
What to buy
- Power station: EcoFlow RIVER 3 Max on Shopee or EcoFlow RIVER 3 Max on Lazada
- Option A: 2 × EcoFlow 160W single-face panel on Lazada
- Option B: 1 × EcoFlow 220W single-face panel on Lazada
- Option C: 2 × EcoFlow 125W bifacial panel on Lazada or on Shopee
Check today’s price. See the EcoFlow RIVER 3 Max buyer guide for full specs.
Bottom line
The RIVER 3 Max doubles the RIVER 3 Plus’s battery but keeps its 220W solar input. Use a setup that reaches 220W, two 160W in series being our pick, and expect about 3 hours of strong sun for a full charge.
Run your own numbers
Frequently asked questions
Does the extra battery on the RIVER 3 Max have its own solar input?
How long does the RIVER 3 Max take to charge on solar?
Is the RIVER 3 Max 572Wh or 576Wh?
What is the best single panel for the RIVER 3 Max?
