TCL TAC-09CSD/FBI Power Consumption: Watts, CSPF and Monthly Cost
TCL TAC-09CSD/FBI FreshIN 2.0 1HP split inverter: 660 W rated input (220–1,100 W range), CSPF 6.28 per TCL's spec sheet. Monthly cost example and 1HP comparisons.
Checked against the sources listed below. How we research.
Key takeaways
- The TCL TAC-09CSD/FBI (FreshIN 2.0) is a 1HP inverter split aircon. TCL's spec sheet gives 660 W rated input, CSPF 6.28 and 2.93 kW of cooling.
- Its input range is 220–1,100 W, with a maximum current of 5.8 A and a 155–265 V operating range.
- We couldn't find the DOE label for the 1HP, so its star rating is unconfirmed. Check the yellow label on the unit before you pay.
- At full rated power, 8 hours a night for 30 days is about 158 kWh, roughly ₱1,901 at an example ₱12/kWh.
- Among verified 1HP aircons, only TCL's own P7 1HP (CSPF 7.11, 650 W) rates higher.
On this page
The TCL TAC-09CSD/FBI is a 1HP inverter split-type aircon. TCL’s spec sheet lists a rated input of 660 W and a CSPF of 6.28, with 2.93 kW of cooling. Its star rating isn’t confirmed because we couldn’t find the 1HP’s DOE label. It is sold as the FBI CoolPro FreshIN 2.0 series at the TCL Official Store on Shopee and the TCL store on Lazada.
TCL TAC-09CSD/FBI specs
| Spec | TCL TAC-09CSD/FBI |
|---|---|
| Type | Split (wall-mounted), inverter |
| Series | FBI, FreshIN 2.0 |
| Horsepower | 1HP |
| Cooling capacity | 10,550 kJ/h rated (1,000–13,000 kJ/h); 2.93 kW energy-label capacity |
| Rated power input | 660 W (range 220–1,100 W) |
| Maximum input | 1,100 W |
| CSPF | 6.28 |
| Energy label stars | not confirmed |
| Current | 2.9 A rated; 5.8 A maximum |
| Power supply | 230V~60Hz, single phase; 155–265 V range |
| Cooling area | 9–16 m² |
| Refrigerant | R32 |
| Where to buy | Shopee · Lazada |
All values are from a spec sheet TCL posted in its official Lazada store gallery.
A spec sheet is not a label
For this model we have TCL’s spec sheet, not the DOE label. The two don’t always agree. For the 1.5HP FBI, for example, the spec sheet says 1,050 W, while the DOE label says 1,130 W. So before you buy the 1HP, find the yellow DOE energy label on the indoor unit or in the listing gallery. Check that it shows about 660 W and CSPF 6.28. If the label differs, go by the label.
What it costs to run each month
monthly kWh = watts × hours per day × days ÷ 1,000
For a bedroom used 8 hours a night, 30 nights:
- At full rated power: 660 × 8 × 30 ÷ 1,000 = 158.4 kWh, about ₱1,901 at an example rate of ₱12 per kWh. Use your own bill’s rate.
- At half the rated input on average (an example assumption; inverters often run well below rated power once the room is cool, but it varies): 79.2 kWh, about ₱950.
The wide 220–1,100 W range shows how much an inverter’s draw can swing. It draws most in the first minutes on a hot afternoon and least on a mild night. Try different hours in the aircon electricity cost calculator and check your electric company on the electricity rates page.
How it compares with other 1HP split aircons
| Model | Rated input | CSPF | Cooling capacity | Stars |
|---|---|---|---|---|
| TCL TAC-11CSD/P7 | 650 W | 7.11 | 3.06 kW | 5 |
| TCL TAC-09CSD/FBI | 660 W | 6.28 | 2.93 kW | not confirmed |

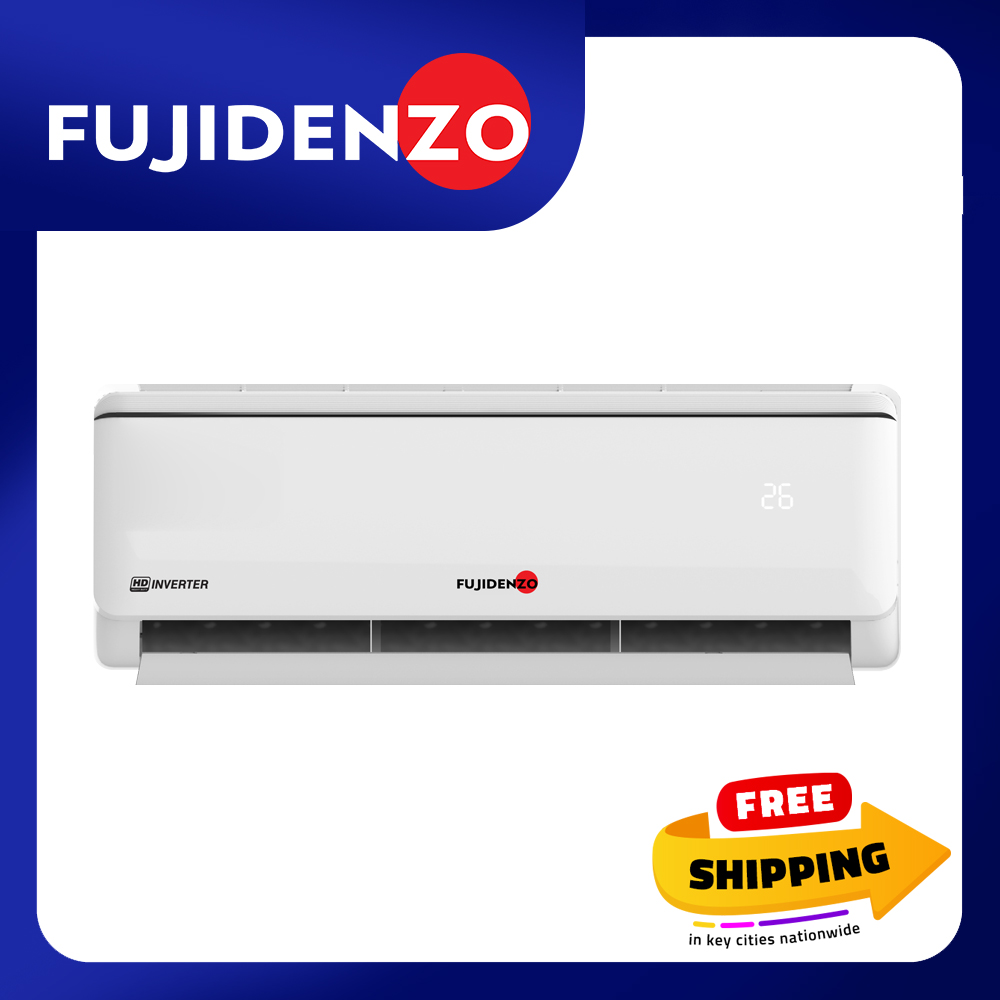

| Fujidenzo HIS-103AG | 820 W | 5.33 (retailer) | 9,720 kJ/h | 5 |

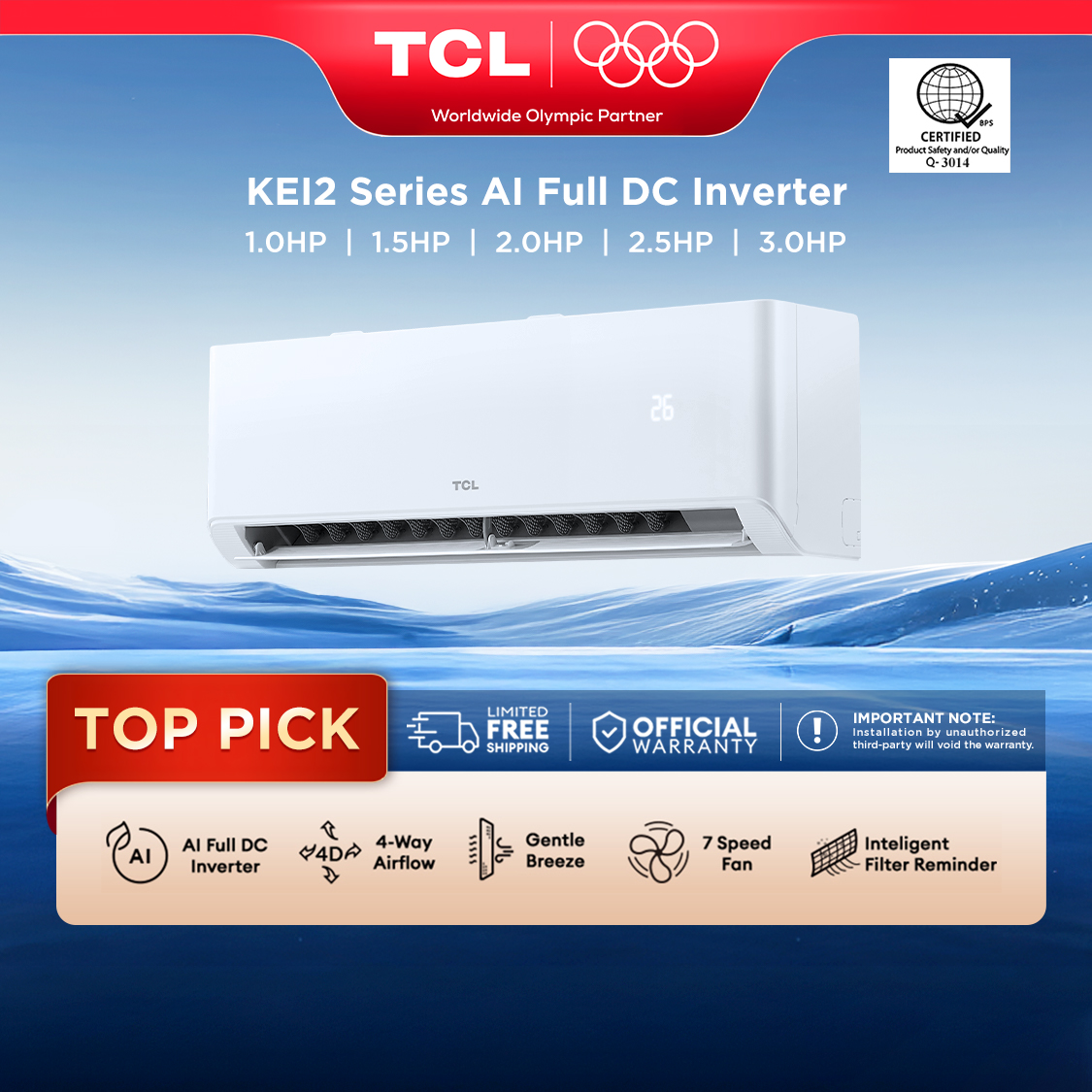

| TCL TAC-10CSD/KEI2 | 780 W | 4.9 | 2.78 kW | 5 |
The FBI is second only to TCL’s newer P7 1HP, which has a slightly lower rated input and a clearly higher CSPF. If both are in stock, compare today’s prices. The FBI may make sense if it is cheaper.
The Fujidenzo HIS-103AG and TCL’s KEI2 1HP both draw more watts at their rated points and have lower CSPFs. The Fujidenzo’s CSPF comes from a retailer, not a label we could open.
Who the TAC-09CSD/FBI suits
- Small to medium bedrooms within TCL’s 9–16 m² range.
- Homes with unstable voltage, given the 155–265 V operating range.
- Backup-power planners: the published 1,100 W maximum input and 5.8 A maximum current are figures many brands don’t publish. Our solar aircon guides show how to use them.
Split-type installation needs proper piping, vacuuming and outdoor-unit placement. Use a licensed technician or TCL’s authorised installer. See also inverter vs non-inverter aircons.
Where to buy
- TCL TAC-09CSD/FBI on Shopee (TCL Official Store, FBI series listing: choose 1HP)
- TCL TAC-09CSD/FBI on Lazada (TCL, FBI CoolPro FreshIN 2.0 series: choose 1HP)
Alternatives:
- TCL TAC-11CSD/P7 on Shopee · on Lazada
- Fujidenzo HIS-103AG on Lazada
- TCL TAC-10CSD/KEI2 on Shopee · on Lazada
Check today’s price, and confirm the selected variant is TAC-09CSD/FBI (1HP).
Bottom line
On TCL’s spec sheet, the TAC-09CSD/FBI is a very efficient 1HP split: 660 W, CSPF 6.28. Only the P7 1HP beats it in our verified data. Because the 1HP’s DOE label wasn’t available to us, check the label on the unit before you pay.
Run your own numbers
Frequently asked questions
How many watts does the TCL FBI 1HP use?
How many stars does the TCL TAC-09CSD/FBI have?
What is FreshIN 2.0?
What current does the TCL FBI 1HP draw?
Sources
We link to primary sources wherever possible. Rates, rules and prices change — check the latest version with the publisher.
- FreshIN II FBI Series split type inverter spec sheet graphic (opens in a new tab) — TCL (image in TCL official Lazada store gallery)
- Implementing Guidelines of the Philippine Energy Labeling Program for Air Conditioners (opens in a new tab) — Department of Energy (Philippines)
