Hybrid Inverters for Filipino Homes: What the PowMr 4.5kW and 6.5kW Models Do

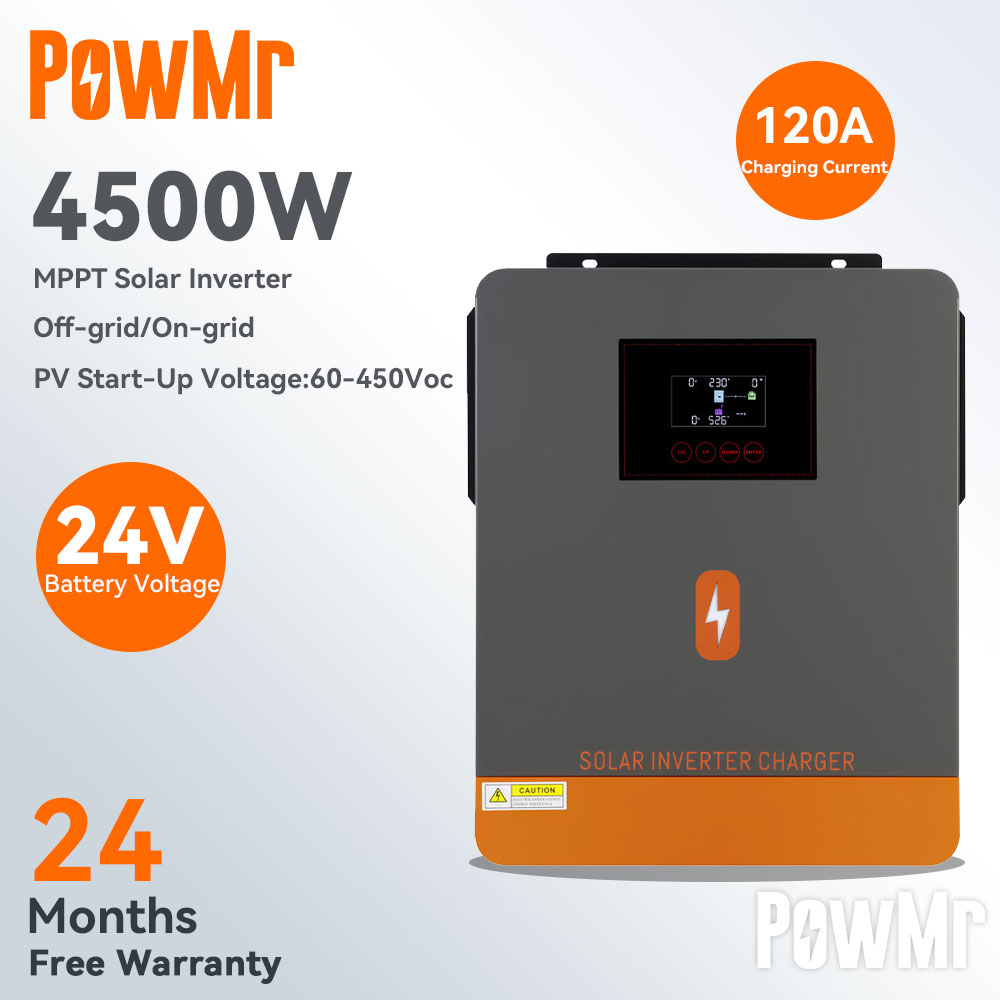

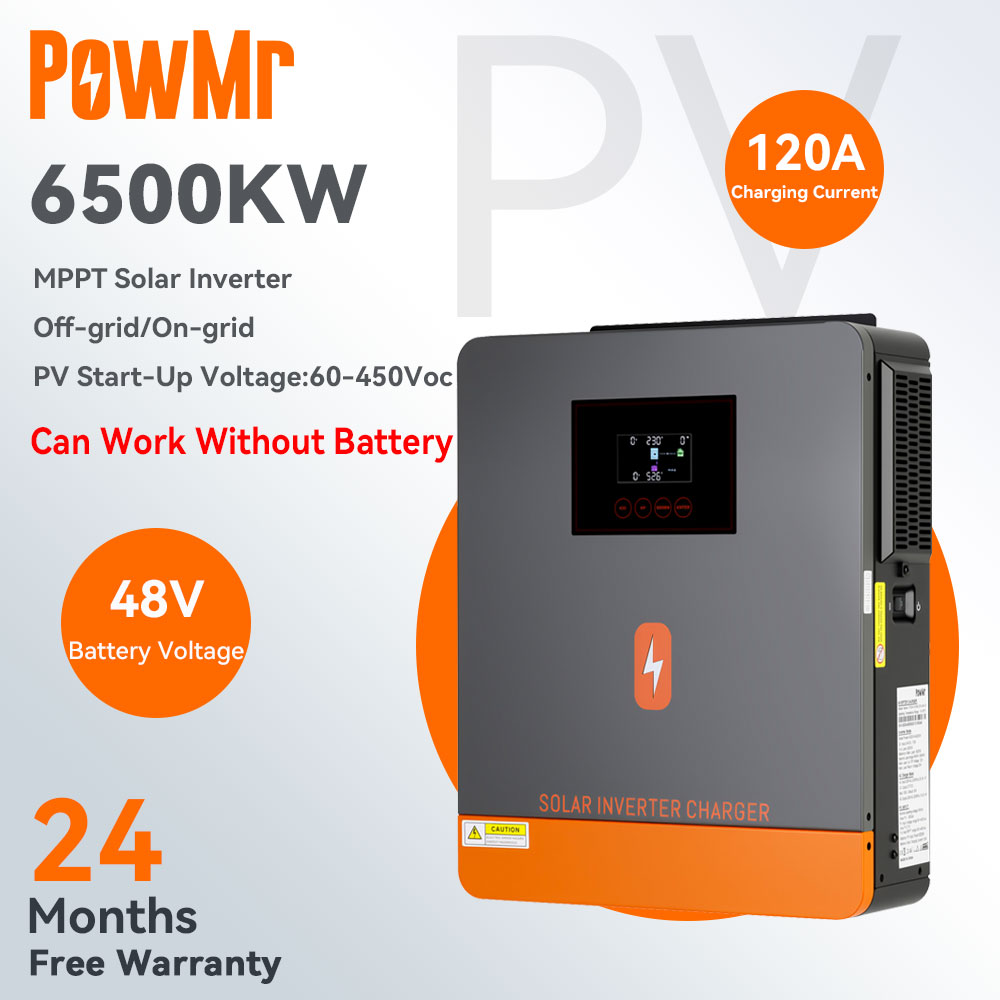

The PowMr 4.5kW hybrid inverter (24V battery) and PowMr 6.5kW hybrid inverter (48V battery) combine an inverter, a solar MPPT charger and an electric company battery charger in one box. PowMr’s catalogue gives both a 55-450V MPPT range, a 450V maximum PV voltage, up to 6,000 W and 6,500 W of solar input, and 230V output at 50Hz or 60Hz. We could not verify grid export, so treat them as backup inverters that charge from solar and from the grid. They must be installed by a licensed electrician under a Professional Electrical Engineer (PEE).

This guide explains what the specs mean for a Filipino home, why string voltage matters so much, where the listings disagree with the catalogue, and what the installation and utility process involves.

What a hybrid inverter does

In everyday use, “hybrid” means an inverter that works with both solar panels and a battery, and also connects to utility power. A unit like this typically:

• Runs your backup loads from the battery through its 230V AC output.
• Charges the battery from solar through its built-in MPPT charger.
• Charges the battery from the grid (utility charging) when solar isn’t enough.
• Passes utility power through to your loads when the grid is up, depending on the mode you set.

That makes it a brownout tool: when the grid drops, your backup circuits keep running from the battery and panels. Our comparison of on-grid, hybrid and off-grid solar explains where this fits.

What “hybrid” does not automatically mean is that the inverter can export power to the grid. That’s a separate capability, and for these two models we couldn’t confirm it (see below).

Verified specs: PowMr 4.5kW vs 6.5kW

These figures are from PowMr’s 2024 product catalogue for models POW-HVM4.5K-24V and POW-HVM6.5K-48V.

Things the catalogue doesn’t tell us, so we don’t state them: the number of MPPT trackers, the maximum PV input current, whether two units can run in parallel, and grid export.

Reading the numbers

• 60Hz support. The Philippine grid runs at 60Hz. Both models list 50Hz or 60Hz output, so set 60Hz during commissioning. (We left a larger PowMr 13.2kW listing out of our product list because its 60Hz output couldn’t be verified.)
• Surge. Motors in pumps, refrigerators and power tools draw a burst of current when they start. A 2× surge for 5 seconds helps with this.
• Battery current is high. At full output, the 4.5kW draws roughly 4,500 W ÷ 24 V ≈ 188 A from the battery, before losses. The 6.5kW draws roughly 6,500 W ÷ 48 V ≈ 135 A. That’s why battery cables, fuses and breakers must be sized by a licensed professional.
• Idle draw adds up. Under 35 W, all day, is up to 840 Wh a day. Under 50 W is up to 1,200 Wh. For a small load list, a smaller system may suit you better; see our DIY solar backup sizing guide.
• Charging. “Max AC charge current” is how fast the grid can charge the battery (80 A on both). “Max total charge current” is the overall charging ceiling (150 A on the 4.5kW, 130 A on the 6.5kW). Check your battery’s maximum charge current and set the inverter at or below it.

24V or 48V?

The main difference is battery voltage, which sets everything downstream:

• 4.5kW, 24V: a 24V battery bank. Higher current for the same power.
• 6.5kW, 48V: a 48V battery bank. Lower current for the same power, so cables can be smaller for the same load, and 500 W more solar input.

Both run lithium or lead-acid batteries with user-defined settings. We don’t list a battery we’ve verified for either, so choose the battery with your installer, making sure its voltage, maximum charge current and maximum discharge current match the inverter’s settings.

Why string voltage matters

A hybrid inverter’s MPPT charger only works inside its voltage window. For these models that’s 55 V to 450 V.

• Below 55 V, the charger can’t track the panels’ maximum power point.
• Above 450 V open-circuit, you risk damaging the inverter.

Small 12V-class panels have low voltages: a Vmp around 18 V and a Voc around 21.6-22.3 V. One panel is nowhere near 55 V. You have to wire them in series.

The minimum: at least 4 panels in series

Minimum panels in series = 55 V ÷ panel Vmp, rounded up
With Vmp 18 V: 55 ÷ 18 = 3.06 → 4 panels (4 × 18 V = 72 V)
With Vmp 20.5 V (BLUETTI PV200): 55 ÷ 20.5 = 2.7 → 3 panels (61.5 V)

We use Vmp, not Voc, because the string has to be above 55 V while it’s working, not just when it’s disconnected. Panel voltage also sags in heat, so more than the minimum gives steadier charging.

The maximum: 18 panels of 21.6 V

We keep the string’s total Voc at or below 90% of the limit, the same 10% safety margin we use for charge controllers (see how to match solar panels to a charge controller):

90% of 450 V = 405 V
Panels in series ≤ 405 V ÷ 21.6 V = 18.75 → 18 panels
18 × 21.6 V = 388.8 V

Verified string limits

From our compatibility data, for each panel with a verified Voc. “Min” is the fewest in series to reach 55 V; “max” uses the 405 V margin limit; parallel strings are limited by maximum PV watts.

Totals in brackets assume full-length strings (18, 15 or 8 panels). Two important limits:

• Parallel strings need a current check. No verified source gives these inverters’ maximum PV input current. Before connecting strings in parallel, confirm the total Isc against the inverter’s nameplate or manual.
• Bosca figures are listing-only, and 18 Bosca panels reach 401.76 V, just under the 405 V margin limit. Read the actual label before building a long Bosca string.

In practice, most home rooftop systems use larger panels than these. None of the larger panels in our product list (for example the Greenest 290W) has a published Voc we could verify, so we can’t give string limits for them. Ask your installer for the panel datasheet and have them run the same checks.

Example strings

• 8 × PowMr 150W flexible in series on either model: Voc 8 × 21.6 = 172.8 V, Vmp 8 × 18 = 144 V, 1,200 W. Inside the 55-450 V window with plenty of margin.
• 12 × PowMr 100W flexible in series: Voc 259.2 V, Vmp 216 V, 1,200 W.
• 6 × BLUETTI PV200 in series: Voc 156.6 V, Vmp 123 V, 1,200 W. (BLUETTI says not to expose the PV200 to rain, so it’s a portable panel, not a permanent roof panel.)

Running without a battery

The listings, not the catalogue, say these inverters can run without a battery, and give a PV start voltage of 150 Voc without a battery and 60 Voc with a battery. If you rely on battery-free operation, the string Voc must be above 150 V: with 21.6 V panels that means at least 7 in series (151.2 V). Check this against the manual that comes with your unit.

Where the listings disagree with the catalogue

Our rule: size strings to 450 V, with the 10% margin, until you can read the maximum PV voltage on the unit’s nameplate. If the nameplate says 500 V, you’ve lost nothing by being cautious. If it says 450 V and you’d designed to 500 V, you could damage the inverter.

Also note that the 4.5kW listing shows only “4.5KW 24V”, so we couldn’t confirm the exact SKU or hardware revision. The catalogue figures may lag the current version. Check the manual in the box.

Export, zero export and net metering

PowMr’s 2024 catalogue tables for both models list “AC Output (Back-Up)” only, with no feed-in or on-grid section. The listings say “On-grid/Off-grid” in the title but don’t describe export. So we don’t tell readers these inverters can export, and you shouldn’t plan a system around it.

What the electric company side looks like, using Meralco as the example:

• Without net metering, “the excess electricity your solar PV produces may be recorded as imported energy from Meralco”.
• “Even for solar systems intended solely for own consumption, it is important to inform Meralco.”
• “If you do not intend to export excess electricity to the grid, you may signup for Zero Export (ZE) instead of Net-Metering.”

So even a backup-only system connected to your home’s wiring involves the electric company. Your installer should handle the paperwork and confirm with your electric company whether Zero Export applies. Other distribution utilities and electric cooperatives have their own steps; see our net metering guide by utility and the net metering explainer.

Installation: not a DIY job

A multi-kilowatt inverter wired to your home’s electrical system is squarely inside the law on electrical work. RA 7920 Section 34 says no installation shall be undertaken unless the plans are “signed and sealed by a professional electrical engineer”, “a construction permit for the execution thereof is first secured”, and the work “is done in accordance with the Philippine Electrical Code and is executed under the responsible charge or supervision of a professional electrical engineer, a registered electrical engineer, or a registered master electrician”.

In practice:

• Design and plans: a PEE signs and seals them.
• Permit: an LGU electrical permit before work starts, and a Certificate of Final Electrical Inspection (CFEI) after.
• Installation: by or under a licensed electrical professional.
• Grid connection, zero export and net metering: through your electric company’s process, handled by your installer.

Plug-and-play portable panels and power stations can be set up by the owner following the manual. A hybrid inverter isn’t in that category. Find licensed help through our solar installers directory, and read the solar installation guide for what to expect, or whether DIY solar is legal in the Philippines for the legal detail.

What to buy

Bring these to your installer for quoting, along with the catalogue figures above:

• Inverter (24V battery bank): PowMr 4.5kW hybrid inverter on Lazada
• Inverter (48V battery bank): PowMr 6.5kW hybrid inverter on Lazada
• Panels with verified Voc (for string design): PowMr 100W flexible on Lazada or PowMr 150W flexible on Lazada, at least 4 and at most 18 in series
• Battery: 24V or 48V to match the inverter, chosen with your installer
• Protection, isolators and cabling: specified by the PEE’s design

Prices change daily, so check today’s price on each listing.

Bottom line

The PowMr 4.5kW (24V) and 6.5kW (48V) are backup-style hybrid inverters with a 55-450 V solar input window, up to 6,000 W or 6,500 W of panels, 80 A grid charging and 230 V output that can be set to the Philippines’ 60 Hz. With small 12V-class panels, wire at least 4 in series to reach 55 V and no more than 18 of the 21.6 V panels to stay under 405 V. Ignore the listings’ 500 V claim until you see the nameplate, don’t count on grid export, and have a licensed PEE design and permit the installation and handle your electric company’s zero-export or net-metering process.
